Power your sub
Compact design applies to internal components too.
JL Audio's XD600/1v2 amp packs a wallop far beyond what you'd expect from something so small. This amp plays bass with true fidelity and impressive impact, without straining your car's electrical system. A cast alloy heatsink and an advanced cooling system keep this amp at optimal temperature, eliminating thermal shut-downs so your music keeps going strong without interruption.
The XD600/1v2 mono amp delivers up to 600 watts RMS to your subwoofer, and its low-pass filter features a choice of slopes for better control over the character of your bass. A subsonic filter allows you to tighten up your system's kick and gets rid of any inaudible, low-frequency information that could detract from your sub's performance.
Works with almost any vehicle's system
"Differential-balanced" inputs keep the signals clear of outside noise, and allow you to connect this amp to just about any in-dash stereo, even a factory radio. The speaker-level inputs feature two auto turn-on modes so you can readily incorporate this amp into a factory system — no need for RCA connections or a remote turn-on lead. An optional wired remote lets you tweak the volume of your sub from the front seat.

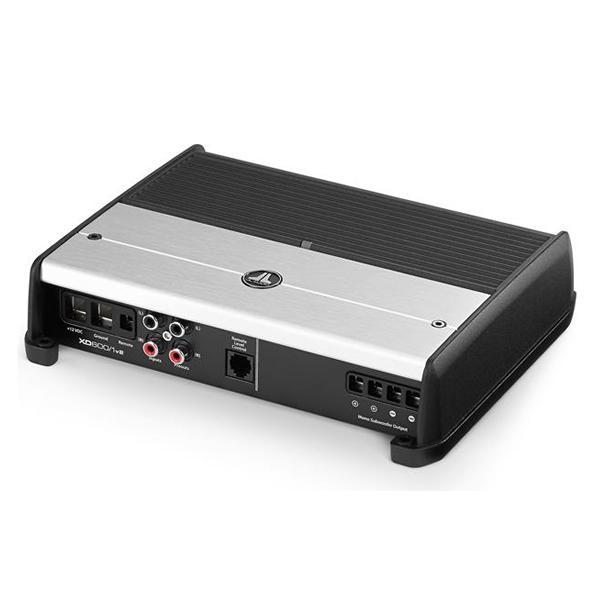

XD600/1v2 connection panel
- mono subwoofer amplifer
- 400 watts RMS x 1 at 4 ohms (600 watts RMS x 1 at 2 ohms)
- variable low-pass filter (50-500 Hz, 12 or 24 dB/octave)
- switchable subsonic filter (30 Hz, 24 dB/oct)
- optional wired remote level controller
- Class D amplifier design with NextD™ switching amp technology
- differential-balanced inputs eliminate noise coming from your vehicle's electrical system
- Advanced Rollback Protection System prevents thermal shut-down
- preamp inputs and outputs
- speaker-level inputs (speaker wire to RCA adapter required for speaker-level input)
- high-level inputs — up to 8 volts RMS (about 16 watts)
- DC offset or signal sensing auto turn-on eliminates need for remote lead
- 4-gauge power and ground leads and a 50-amp fuse recommended — wiring and hardware not included with amplifier
- no onboard fuses — when installing multiple amps in a system, an additional 50-amp in-line fuse between the distribution block and the amplifier is recommended
- 8-9/16"W x 2"H x 7-1/8"D
- warranty: 2 years
What's in the box:
- Mono amplifier
- Self-adhesive JL Audio badge
- 2.5mm Allen wrench
- Owner's Manual
