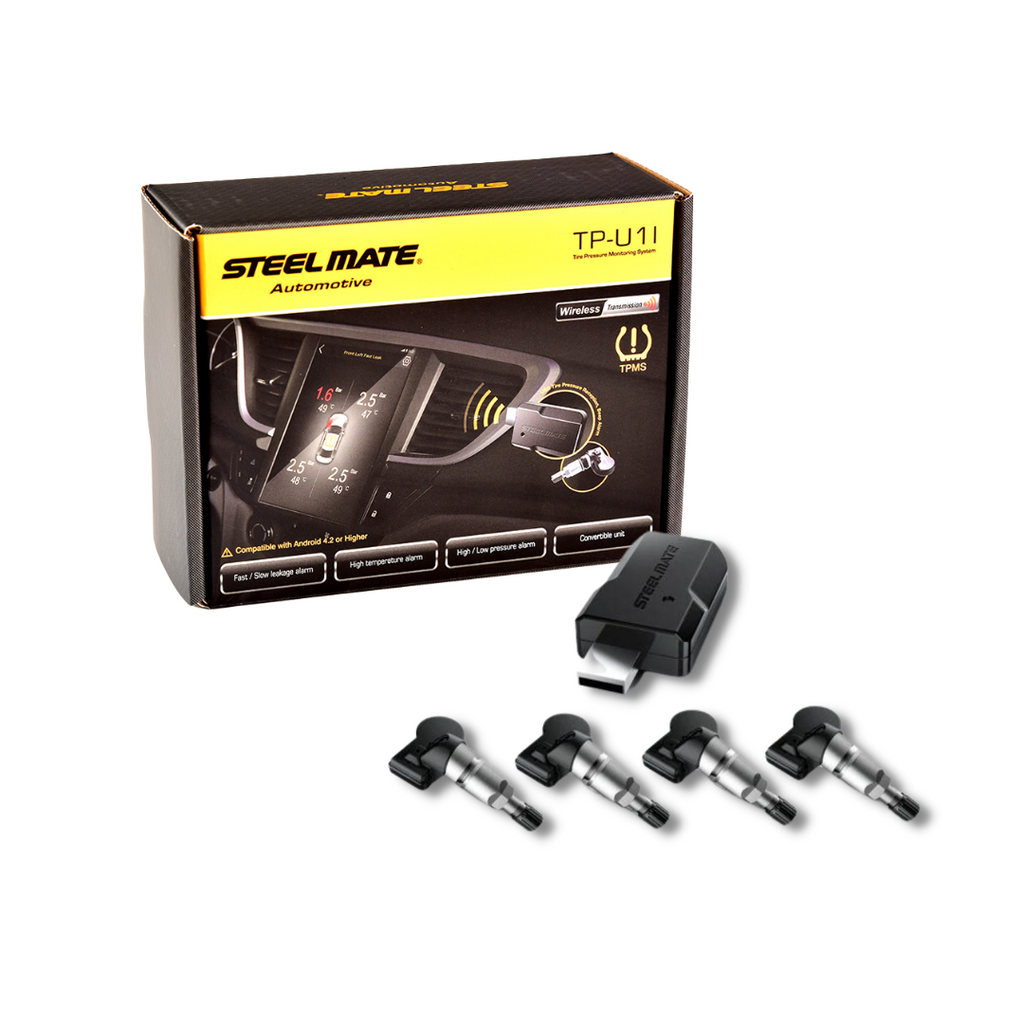

Steelmate TPMS Tire Pressure Monitor USB TPMS with 4 Internal Sensors Tire Pressure Real-time Display Only for Android System
Features:
By using the advanced wireless sensors that highly integrated pressure and temperature sensor we offer the top of the line and reliable TPMS for you.
Large LCD display screen. Shows the tire pressure, and the tire condition can be seen at a glance.
Abnormal pop-up alarm. When the tire pressure and temperature are abnormal, the alarm interface will pop up and there will be a voice warning.
In the Android large screen directly displays the tire conditions, saves the space and there is no need for adding the display screen, making your central console clean and tidy.
Display and monitor the real-time temperature and pressure of 4 tires at the same time, never miss any data!
Real-time detection of tire pressure/temperature, battery power, leakage / low battery alarm. Instant audio alarm of abnormal pressure or temperature.
USB plug and play, easy installation.
Specifications:
Brand: Steelmate
Model: TP-U1I
Receiver
Operating frequency: 433.92±0.05MHz
Operating voltage: 5±0.5V
Operating current: ≤16mA
Pressure range: 0-8Bar/0-116PSI
Working Temperature: -20℃ ~ +70℃
Sensor
Operating frequency: 433.92±0.015MHz
Operating voltage: 2.3-3.6V
Operating current: ≤0.8uA
Working Temperature: -30℃ ~ +105℃
Adjustable value range
High pressure value: 2.6-6.0Bar/37-86PSI
Low pressure value: 0.9-3.9Bar/13-55PSI
High temperature value: 70℃ ~ 90℃
Default value
High pressure value: 3.3Bar/47PSI
Low pressure value: 1.7Bar/24PSI
High temperature value: 80℃ ~ 176℃
Package size: 15.5*11.5*6cm
Packge weight: 365g
Package list:
1 * Receiver
4 * Sensor
1 * Manual
Notes:
1. This system is for different vehicles with tire pressure
within 6.0Bar / 86PSI.
2. Download the Steelmate"TPMS APP", The tire data will be shown on the display automatically once ACC ON each time.
3. Suitable only for cars with Android os Headunit
*Price excludes installation
